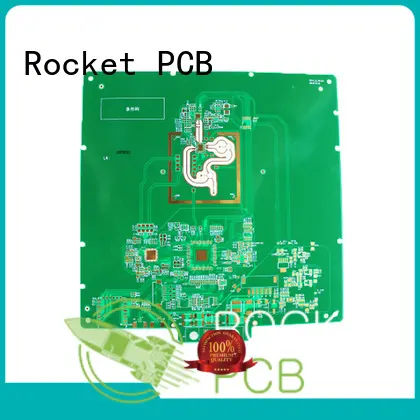

structure circuit board material for digital product Rocket PCB
1. Our professional inspectors and workers ensure the whole production process of Rocket PCB circuit board proceed well.
2. The product will not release a disturbing odor. The wood materials are specially heat-treated to withstand the high temperatures, producing no unhealthy gases.
3. Rocket PCB Solution Ltd.'s customer service is highly recommended by clients.
4. Complete detection to rogers pcb ensures its higher quality in the market.
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. is an internationally renowned leading enterprise committed to circuit board production.
2. Rocket PCB Solution Ltd. has global top quality management capabilities and a fantastic brand recognition.
3. Rocket PCB aims to promote exporting rogers pcb . Get an offer! Rocket PCB Solution Ltd. has been aspired to advocate its cooperate culture to be persistent in work. Get an offer!
