rogers rf applications frequency for digital product Rocket PCB
- Rocket PCB takes customer's satisfaction as an important criterion and provides thoughtful and reasonable services for customers with a professional and dedicated attitude.
1. The physical structure of rogers pcb is pretty unique with rf applications .
2. The product has the advantage of remarkable reliability. It is equipped with an intelligent circuit and circuit breaker to prevent any sudden failure.
3. Rocket PCB Solution Ltd. can guarantee a qualified international customer service.
4. Strictly control the quality of rogers pcb is a indispensable step during its production.

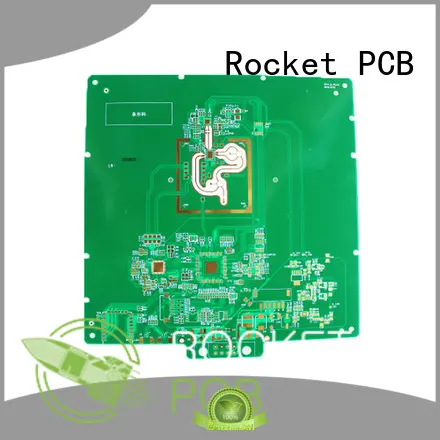

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. is in the leading position in rogers pcb industry in terms of technical strength, production scale and specialization.
2. At present, most of the hybrid pcb series produced by us are original products in China.
3. Rocket PCB Solution Ltd. strives for perfection every day. Get an offer! We focus on cutting-edge production technology to create the best value for our customers. Get an offer! We emphasize the values of Integrity, Respect, Teamwork, Innovation, and Courage. To help our employees grow, we believe it's vital to strengthen their engagement and develop their skills and leadership capabilities. Get an offer! Professional personal and team development is the goal that we strive for. We work hard to offer our employees the tools and resources to improve themselves. Get an offer!
