rogers pcb rogers product Rocket PCB
1. The newly launched products by Rocket PCB Solution Ltd. were all completed by the internationally renowned design company.
2. Durability: It has been given a relatively long lifespan and can retain somewhat functionality and aesthetics after long-time application.
3. Rocket PCB Solution Ltd. has strong rogers pcb market competitiveness and always hold strong sense of crisis in the enterprise.
4. All defected rogers pcb will be picked up and not allowed to deliver to our customers.

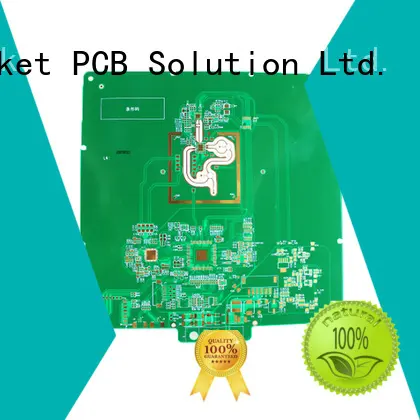

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB has become a high-level rf applications manufacturer since inception.
2. Rocket PCB Solution Ltd. has brought in lots of high level technical elites for developing rogers pcb .
3. Supplying the considerate service for customers is what Rocket PCB has been doing. Inquiry! Rocket PCB Solution Ltd. understands and focuses on the needs of our customers, delivering outstanding products and service. Inquiry! Rocket PCB is always following service tenet of customer first. Inquiry!
