Anylayer/ ELIC (Every layer interconnection)
In order to adapt to the development of CSP and inverted chip packaging (FC), it is necessary to use high density PCB with internal via hole (IVH) structure. In order to break through the limitation of traditional HDI high density interconnection laminates, it is necessary to import higher-order any layer interconnection technology so that any layer can be arbitrarily connected to another layer to form internal conduction.
The interconnection structure of via hole (IVH) is designed to be used in higher-level HDI products to achieve the purpose of light, thin, short and small.
![Rocket PCB multi-layer double layer pcb any at discount 5]()
Advantages
Improving high Density Wiring of Products
Reduce the weight of PCB substrate: about 60%
Reduce the size of manufactured handsets: about 30%
......
ROCKET PCB Any Layer PCB （ELIC）process flow
![Rocket PCB multi-layer double layer pcb any at discount 7]()

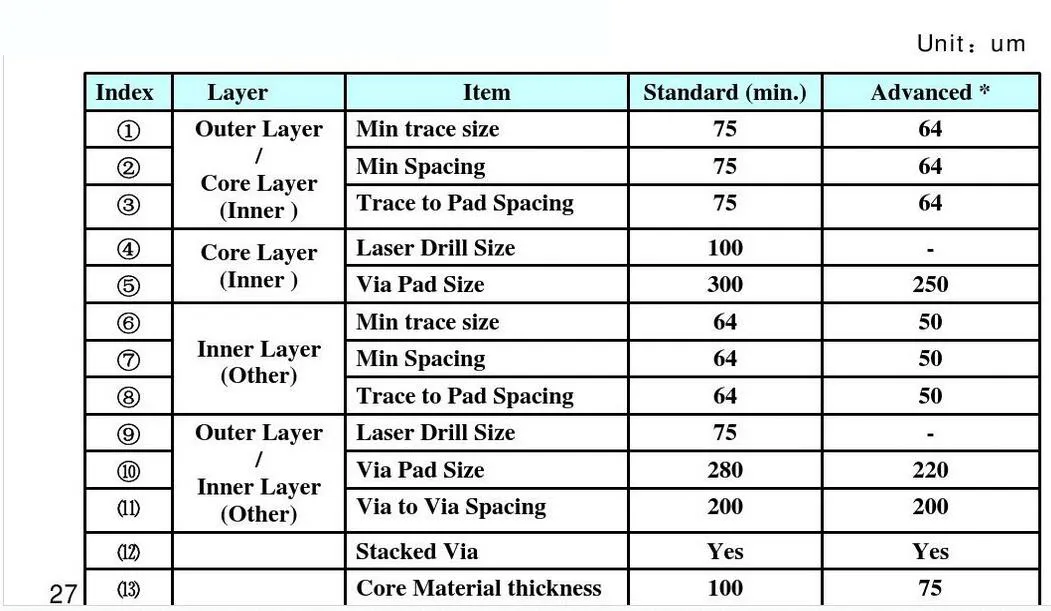

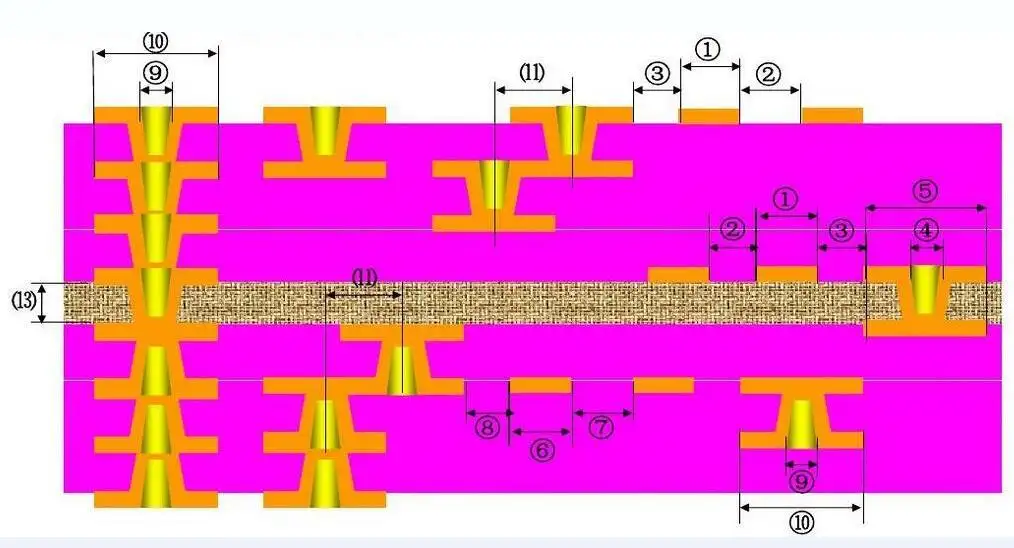

Anylayer PCB DFM suggestion for layout
![Rocket PCB multi-layer double layer pcb any at discount 8]()
![Rocket PCB multi-layer double layer pcb any at discount 9]()
Product FEATURES
◪ Any Layer PCBs with laser vias and filled plating on each layer
◪ 0.4mm thin spacing CSP supported by Any layer interconnection
◪ Mass-production of 10-layer M-VIA Ⅲ (Any Layer PCB) for mobile devices
ROCKET PCB STRENGTH
SPECIALIZED MANUFACTURING
Conductive materials and core-to-core bonding
Embedded components
RF connector attachment
Laser direct imaging (LDI)
Laser etching
Laser forming
Multi-level cavity construction
Plated cavities and edges
Composite/hybrid Structures
N+N dual press-fit
Dual-drill
Bonding on metal core
Bulid-up HDI
Long-short and staged gold finger
A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF control
A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF control
A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF contro
CAPABILITIES
3mil line and space
4mil laser defined vias
6mil chip-on-board
6mil mechanically drilled vias
Conductive and non-conductive via fill
Dual backdrilling
Sequential lamination
Mixed dielectric
Heatsink Bonding
Heavy copper/thermal vias
Blind/buried vias
Stacked and staggerd microvias
EXTENSIVE ANALYTICAL TESTING![]()
Design Rules Check(DRC)
Electrical Testing
Automated Optical Inspection(AOI)
X-Ray
Plating thickness testing
Metalized vias inspection
Thermal shock testing
Surface peelability testing
Impedance control testing
100% visual inspection
Solderability testing
Ionic cleanliness testing
Metallographic microscopic analysis
High voltage testing
Insulating resistance testing
FEATURES
PTFE
High speed/low loss
High temperature
Low CTE
Lead-free, HASL, ENIG, EPENIG, Immersion Silver, Tin, Gold finger
Combination surface finished
Copper-filled microvias
Product application
![Rocket PCB multi-layer double layer pcb any at discount 15]()
Consumer electronics
![Rocket PCB multi-layer double layer pcb any at discount 16]()
Automotive electronics
![Rocket PCB multi-layer double layer pcb any at discount 17]()
Communications
![Rocket PCB multi-layer double layer pcb any at discount 18]()
Energy
![Rocket PCB multi-layer double layer pcb any at discount 19]()
Industrial & Instrumentation
![Rocket PCB multi-layer double layer pcb any at discount 20]()
IOT/Smart Home
![Rocket PCB multi-layer double layer pcb any at discount 21]()
Medical electronics
![Rocket PCB multi-layer double layer pcb any at discount 22]()
Security Industry
