Rocket PCB material rogers pcb rogers for electronics
-
v s
- Rocket PCB runs a comprehensive service system covering from pre-sales to sales and after-sales. Customers can rest assured during the purchase.
1. No sluggish components are available during the production of Rocket PCB circuit board , because nearly all production stages are strictly under control and inspection, including the inspection of diodes and capacitors.
2. The product is safe to use. Its electromagnetic blowdown level is controlled to a low level and its electrical insulation are guaranteed effectively.
3. This product is hypoallergenic. The chemicals used in its fabric and coating are safe and they won't rub off onto the skin.
4. Installation service is also available in Rocket PCB.
5. Under the efficient management mode, Rocket PCB has got its good reputation in the rogers pcb market.

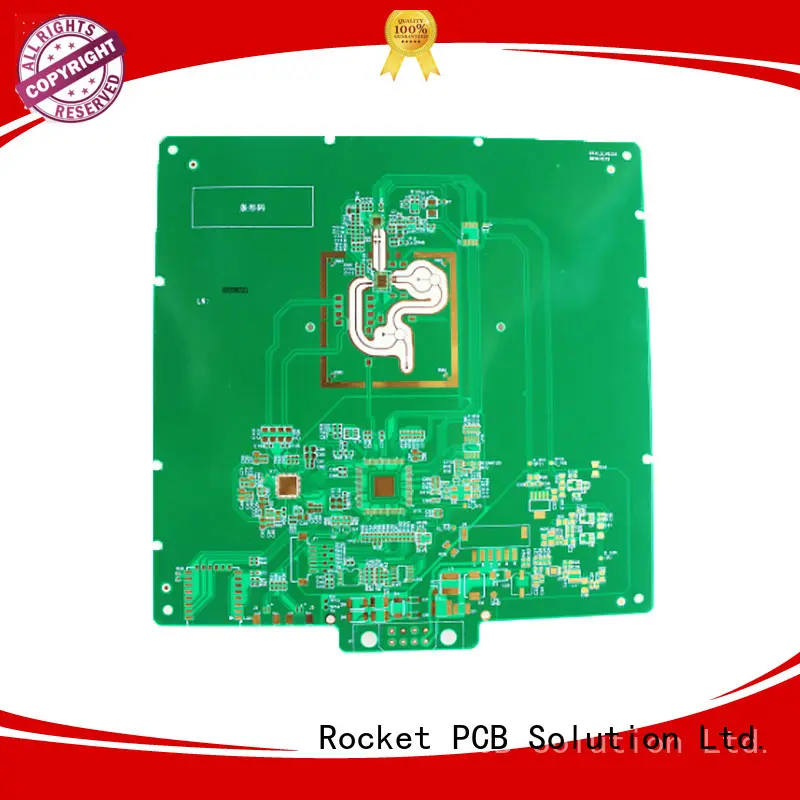

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. is professional enough to provide the most attentive service and the best rogers pcb .
2. Rocket PCB Solution Ltd. has global top product development capacities.
3. The mission of Rocket PCB is to offer the superior hybrid pcb for customers. Call now! Aiming to be the top brand in circuit board field, Rocket PCB Solution Ltd. take the tenet of material pcb. Call now! The next mission of Rocket PCB Solution Ltd. is to improve rf applications . Call now! Rocket PCB Solution Ltd. will set higher goals for itself in further development. Call now!
