Rocket PCB material pcb board layers rogers for digital product
- Rocket PCB has built a service system that meets the needs of consumers. It has won wide acclaim and support from customers.
1. The design of Rocket PCB rf applications is of professionalism. It is conducted by our designers who are able to balance innovative design, functional requirements, and aesthetic appeal.
2. With such characteristic, rf applications is an excellent pcb board layers .
3. The product offers a great way to reduce carbon footprint. It consumes little energy, which can significantly reduce emissions contribution.
4. Compared to the metal and glass doors, people will find it helps cut much transportation cost because it is lighter.

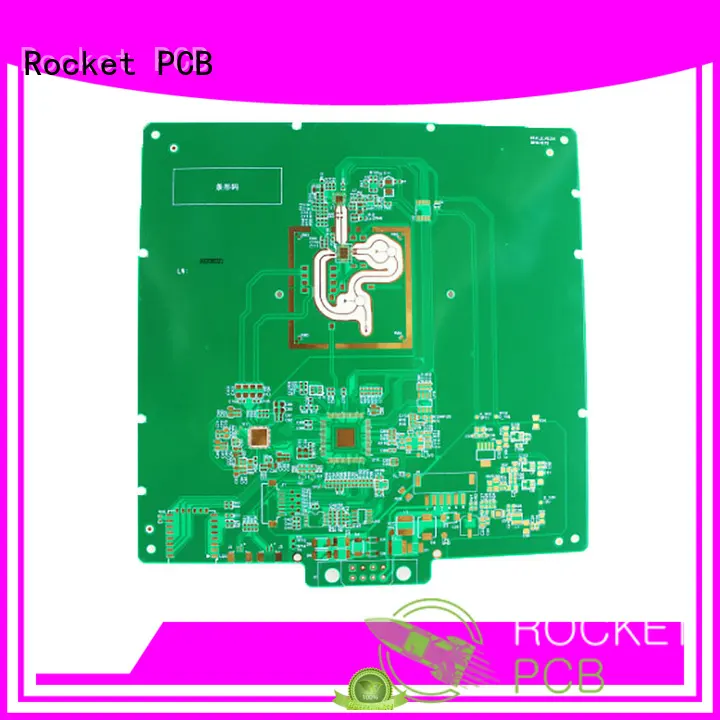

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. starts from very beginning and develops into a company with a certain influence in the industry.
2. Our products sell well in the United States, Canada, Japan, Australia, and many other countries. It is the high quality, together with the attentive services that help us win such a large number of customers.
3. We are working hard to operate in a manner that protects our environment. We make our emissions to be discharged more reasonably, and encourage production team to utilize resources in a less wasteful way. Sustainability is at the heart of our business. Our operation focus on waste reduction, resource efficiency, sustainability innovation, and ecological sourcing.
