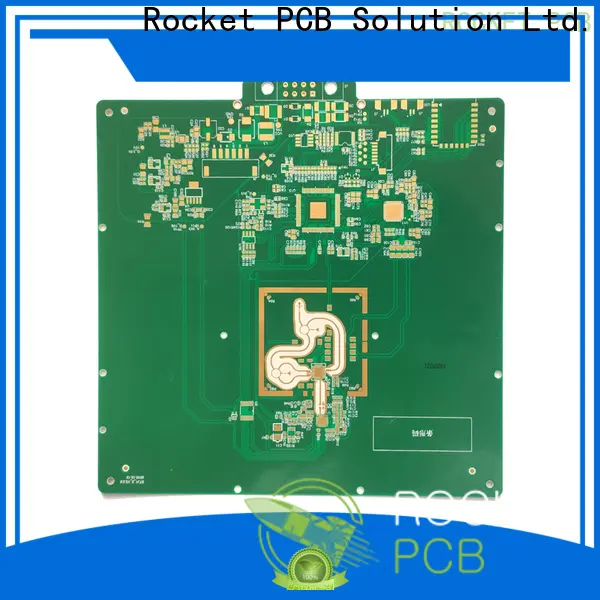

Rocket PCB material high frequency pcb board material for electronics
1. Rocket PCB has undergone a series of tests that are designed for refrigerator compressors and its external components. These tests include suction pressure, discharge pressure, and absorbed power. The product allows a high density among components
2. Rocket PCB Solution Ltd.'s technology and services are at the leading level in the industry in China. It is properly laid out, giving less electronics noise
3. The product is good in heat transfer. The thermal interface materials fill the air gaps which have low heat conductivity, therefore improving the heat conduction path. It reduces the component welding points and is possible in the reduction of the failure rate
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. With advanced technology applied in high frequency pcb board , we take the lead in this industry.
2. Rocket PCB Solution Ltd. is always ready to provide the best service to our customers. Get price!
