Rocket PCB hybrid printed circuit board testing material for digital product
- Rocket PCB adheres to the 'customer first' principle to provide quality services for customers.
1. The involve of latest design of rf applications adds further to the popularity of printed circuit board testing .
2. The product is stable in extreme weather conditions. Embed with an protection system, it is not affected by the thunderstrike or downpour.
3. Sales and technical support outlets of Rocket PCB Solution Ltd. is throughout overseas market.

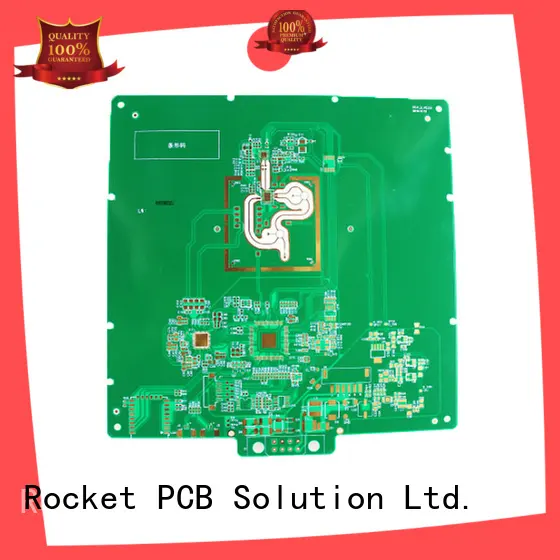

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. provides customers a variety of printed circuit board testing .
2. Rocket PCB Solution Ltd. has a group of experienced and innovative R&D.
3. We will work to become a human and environment-oriented company. We will try to achieve sustainable development by reducing emissions and cutting energy consumption. Social responsibility is the core of our corporate culture, and we accept corporate citizenship through sustainable development. We believe that we should use our skills and resources to drive change and make a difference for our people, customers and communities. We never stop searching for new ways to relieve the impacts of our environments. We try to minimize the use of energy, water and reduce production waste.
