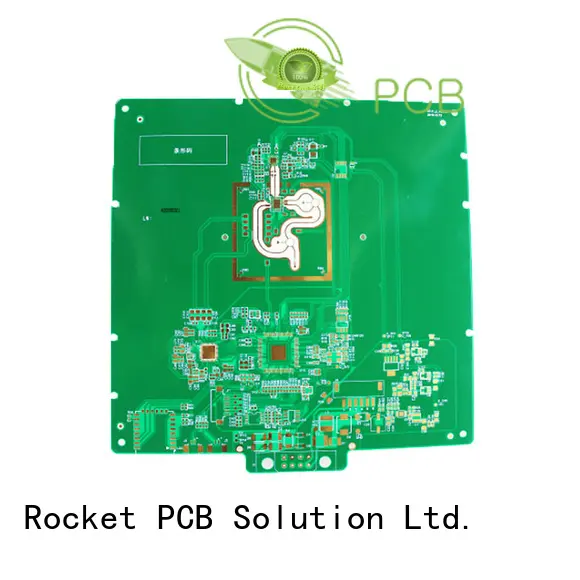

Rocket PCB hybrid pcb structure for digital product
1. The different materials are designed by Rocket PCB Solution Ltd. to create a rich variety of hybrid pcb .
2. The product has effective sealing. The adhesion of sealants and the compression of gaskets are finely handled with to ensure the leakage resistance.
3. Sales organizations of Rocket PCB Solution Ltd. have been established all over the world.
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Engaged in the design and manufacture of specialized rf applications , Rocket PCB Solution Ltd. is considered one of the top suppliers in China.
2. The cutting-edge technology adopted in hybrid pcb helps us win more and more customers.
3. In order to accelerate the development of Rocket PCB, it is necessary to always put customers first and quality foremost. Check now! What makes Rocket PCB stand out among the rogers pcb market is to always stick to the innovation tenet. Check now!
