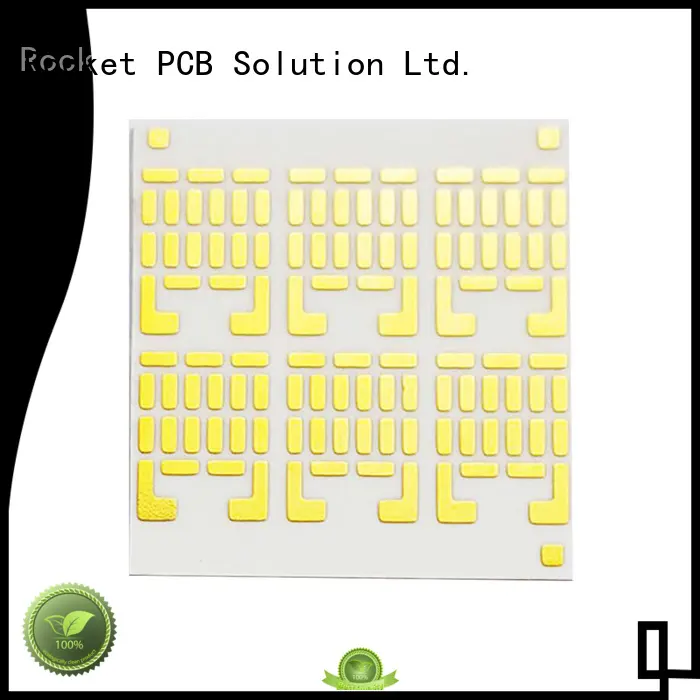

Rocket PCB conductivity ceramic circuit boards board for electronics
1. The design of ceramic circuit boards is concise but beautiful.
2. It delivers great benefits to customers with longer service life and stable performance.
3. An experienced quality control team inspects the quality of this product.
4. The product is widely appreciated by customers for its considerable application prospects.
5. This product has a wide range of applications, playing an important role in the industry.
Processing alumina ceramic-based copper clad laminate, alumina ceramic laminate, LED ceramic laminate, Al2O3 ceramic laminate, high thermal conductivity ceramic PCB, ceramic-based CCL PCB
Ceramic-based circuit board is based on ceramics as a matrix material and fabricates electronic components of metal circuits on it. It is an indispensable basic material for power module packaging in the electronic field. Ceramic substrates refer to the special process of copper foil bonding directly to the surface of alumina (AL2Q3) or aluminium nitride (ALN) ceramic substrates (single or double sides) at high temperature. The ultra-thin composite substrate has excellent electrical insulation, high thermal conductivity, excellent solderability and high adhesion strength. It can etch various patterns like PCB board, and has great current carrying capacity. Therefore, ceramic substrate has become the basic material of high-power electronic circuit structure technology, and is the best choice for high-power LED, power devices, microwave devices, automotive electronics, high-frequency devices, solar cell components and other applications.
Product FEATURES
◪ Higher operating temperatures up to 350℃
◪ Low expansion coefficient
◪ Good thermal performance
◪ Superior high-frequency performance
◪ Reduce costs for testing, insertion and assembly
◪ Smaller package size
◪ Sealed packaging with a water absorption rate of 0%
Rocket PCB specializes in alumina (Al2O3) and aluminum nitride(AlN) boards, applying the thick film and the technology of direct bonding copper (DBC) and Direct copper Plating (DPC) to printed circuits.
Alumina (Al2O3) is widely used with its low cost. However, it is not a very good thermal conductor (24-28 W/MK), but it is still better than most metalcore PCB, because it does not require a dielectric layer between the circuit and the core. If needed, the through-hole filled with silver (Ag) can still improve thermal performance.
The board made of alumina is usually thicker (0.5mm-1.5mm) and alumina can be processed to be transparent.
Aluminum nitride (AlN) has better thermal property (> 170 w/MK) but is also more expensive. And its thermal performance can be further improved by AG or AU trace and through-holes.
Product application
Company Features
1. Rocket PCB Solution Ltd. is a China-based manufacturing company specializing in design, development, manufacturing, sales, and distribution of ceramic circuit boards .
2. Rocket PCB enjoys abundantly advanced technogical force to produce ceramic pcb material .
3. Rocket PCB Solution Ltd. will provide you with cost-effective products and services! Inquire now! Rocket PCB strives to win the market by its highest quality ceramic pcb and most praised customer service. Inquire now! As a developing company, Rocket PCB aims to be a pioneer in metal base pcb industry. Inquire now!
