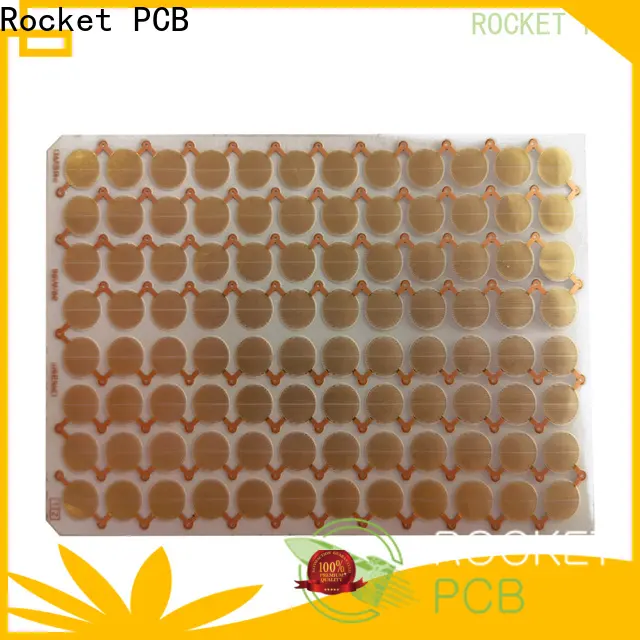

Rocket PCB board flex pcb polyimide medical electronics
1. Thanks to the design of flex pcb , our products are unequal in performance. It is the perfect choice for manufacturers of electronic components, instruments, and equipment
2. This product is an essential part of the most majority of electronic assemblies, power electronic devices, and optoelectronic components. It plays an important role in modern electronic equipment
3. This product is thoroughly inspected as per the quality guidelines. It reduces the need for interconnecting wiring
4. It is put on the market after strict quality inspection. Thanks to the application of the shielding layer, its signal distortion is reduced
Transparent PCB-PET FCCL
Cr-Free Sputtering & Plating Type PET FCCL
PET FCCL, Cu/PET/Cu film is an adhesiveless double-sided (D/S) copper clad laminate, using PET film and sputtering with electroplating Cu Plating on both sides.
Coated PET transparent film, coated PET substrate glue, and cured to form PET-FCCL, which is different from the traditional PI-FCCL substrate in the type of coated substrate.
Cu/PET/Cu films are designed for a wide variety of flexible cables and LED packaging substrates applications which require advanced material performance, temperature resistance, fine pitch, and high reliability.
Product Characteristics
Excellent dimensional stability
Excellent flexibility
Finer line etching capability
High Peel Strength after thermal and chemical treatment
Excellent chemical durability
Manufacturing Process
1) Sputtering
Pretreatment & tie coat layer is the chief process for improving the adhesion between PET film & Cu plating layer.
2) Plating
It’s the electroplating process which is important to control the Cu plating thickness.
Structure
Properties
Storage
Cu/PET/Cu film should be stored in the original packaging at temperatures of 4–29°C (40–85°F) and below 70% humidity. The product should not be frozen and should be kept dry, clean and well protected.
Application
LED flexible light bar, radio, smart home, smart car and other fields.
Company Features
1. Doing well in R&D and production of flex pcb , Rocket PCB Solution Ltd. has gained a high reputation at home and oversea market. At present, most of the flexible circuit board series produced by us are original products in China.
2. We have the capability of researching and developing state-of-the-art technologies of pcb flex .
3. Our high-technology flexible printed circuit is the best. Our resolve is to build Rocket PCB into a leading flexible printed circuit boards manufacturer. Check it!
