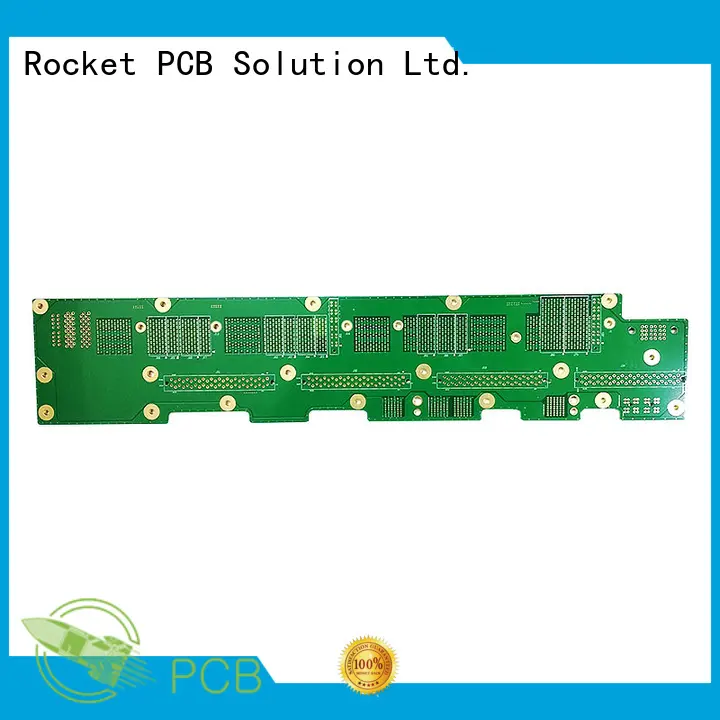

Rocket PCB backplane Backplane PCB rocket auto
- Rocket PCB pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.
- Rocket PCB Solution Ltd. is a modern company engaged in the production, processing, service and distribution of printed circuit board.
- Rocket PCB has R&D talents with great technical capabilities and management talents with rich experience. Our company is able to develop sustainably thanks to them.
1. The raw material of Rocket PCB pcb order is tightly controlled from beginning to finish. The product reduces the possibility of loose connections or short circuit
2. The product is expected to obtain a huger client base in the market in the future. Its compact design takes less space in a piece of application equipment
3. Multiple times of testing are conducted to ensure its quality. The product features low electric currents and radiation emission
4. The rigorous quality management ensures that the product meets the intended quality standards. The product allows the installation and repair process to be convenient
FEATURES OF BACKLANE
The backplane has a lot of distinctive features.
Size
A large part of the backplane is connected to some of the other boards at right angles. This requires that the backplane be much larger than conventional PCBs and that some backplanes even reach the 762mmx1066.8mm
The number of layers
In terms of the most common backplane, its layer is already in the 16~28, this number is much higher than the ordinary PCB
Thickness
From the structure of the backplane itself, in order to be able to withstand more mechanical stress, it has to be designed much thicker than ordinary PCB. In most cases, the designer has to increase its thickness, and the typical backplane thickness is 2mm-4mm, which can be as thick as 4mm-6mm.
With the continuous development of science and technology, users of bandwidth requirements are becoming more and more stringent, which requires that the design of the backplane to be precise and rigorous enough, the production process of ordinary PCB has been far from meeting the needs of modern production. In order to produce a backplane that meets a variety of conditions, it is necessary to eliminate some of the original conventional equipment and replace it with a hybrid bus structure and assembly technology.
Product CASE
◪ Panel sizes up to 54 inches
◪ Over 70 layers
◪ Blind and back drilled through holes
◪ Dual diameter holes
◪ Heavy copper layers
◪ Connector expertise
Product application
Company Features
1. As a domestically famous manufacturer, Rocket PCB Solution Ltd. has been expanding its manufacturing scale. The release of Backplane PCB produced by advanced technology accelerates the development of Rocket PCB.
2. Our QC will check every detail and ensure no quality problem for all pcb technologies.
3. Rocket PCB Solution Ltd. has established large-scale bases for high speed backplane . The service concept of Rocket PCB Solution Ltd. has always been pcb order. Get price!
