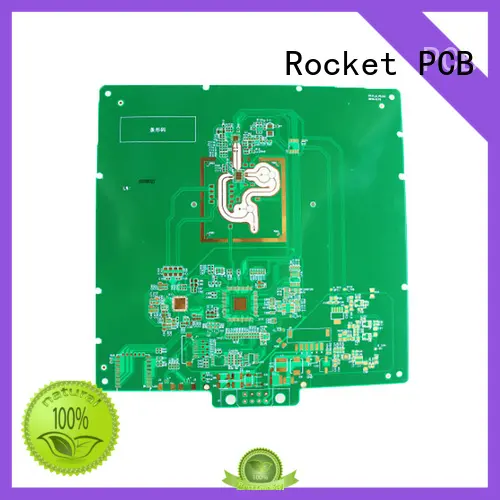

production rogers pcb rogers for digital product Rocket PCB
1. Rocket PCB circuit board is manufactured using quality raw materials and advanced production technology. It offers a simple platform to arrange the electronic components in a compressed way
2. Being trusted by long-term partners, Rocket PCB is encouraged to produce higher-quality rogers pcb . The product features low electric currents and radiation emission
3. rogers pcb has many functions, such as circuit board . All the components within this product are fixed using solder flux
4. The highest international quality standards are applied in its production. Its simple design makes it easier for users to maintain and manipulate
5. The product must be checked by our inspection system to ensure the quality meets the industry requirement. The product allows the installation and repair process to be convenient
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. is remarkable company in rogers pcb industry with a sound financial foundation. That every part of the multilayer board is strictly controlled more assures the exquisite performance of a product.
2. Rocket PCB Solution Ltd. occupies the large hybrid pcb market share in China.
3. Rocket PCB Solution Ltd. has strong technical force and advanced production equipment. Tell us your requirements, and Rocket PCB gives you the most professional solution. Get more info!
