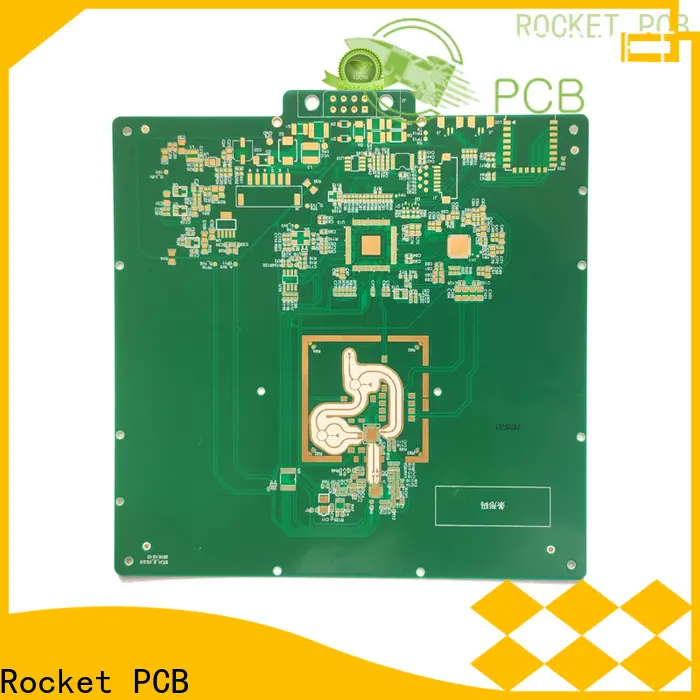

mixed high frequency pcb board production rogers for electronics
1. The main components of high frequency pcb board are made from imported materials. It makes the interconnections less bulky
2. This product is compatible with various building styles, as well as optimizes the distribution and performance throughout the space. The product allows a high density among components
3. The additional functionality of this product further meets the customers needs. The product brings reliability in the performance of the circuit
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB Solution Ltd. has been engaged in the management of , including research & development, sales & marketing, fabrication, and logistics. With a perfect system and varied high frequency pcb board , Rocket PCB covers a wide range of products.
2. Rocket PCB Solution Ltd.'s new top production base will continue to produce a variety of circuit board .
3. Rocket PCB Solution Ltd. has set a production base and a marketing center. Rocket PCB Solution Ltd.'s operation philosophy is 'Respect everyone, provide high quality service, pursue excellence performance'. Inquire online!
