24 hour real-time technical support Quick turn around with 24 hours and instant quote. For Backplane board, will be based on board parameters, normally 15-30 days.
Effective and flexible PCB engineering solutions save your cost. We always put the best interests first when providing innovative solutions for manufacturing customers’ products, we are more willing to help customers grow.
Rapid feedback on the layout,build-up, panels, impedance, material selection, design rules, manufacturability, costs of different solutions, use of micro vias, gold plating, special laminates, etc.
Strong partnerships with different reputed material suppliers such as Rogers, Arlon, Nelco and Taconic can realize a fast service to a wide range of PCB applications.
Dozens of tests such as open/short circuit testing( ET test), AOI, X-ray, impedance testing, solderability testing, thermal shock testing, metallographic micro-slicing analysis, halogen-free testing, etc.100% outgoing pass rate.
Complete services from free DFM, traceable manufacturing to complete after-sales service, on time delivery 99%.
We will keep secret for customer sale area, design ideas, drawing and all other private information.
Flexible payment terms. Samples for 100%TT, mass production payment: 50% advance payment 50% balance should be paid off before loading or accept monthly statement if the order is stable.

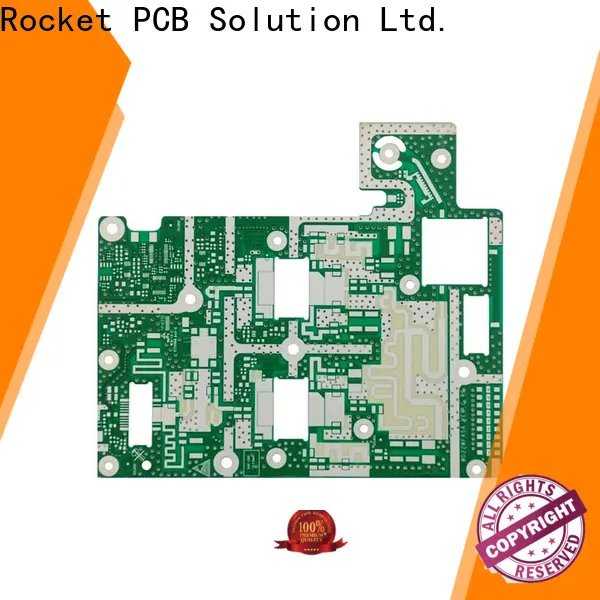

micro-wave microwave pcb rfmicrowave hot-sale industrial usage
Rocket PCB
provides high-frequency microwave printing circuit board of the fast
sample production services. Professional production experience for high
frequency circuit boards used in power divider, coupling and device,
circuit builder, amplifier, dry release, base station 3G antenna.
Company year-round stocks domestic and imported high-frequency material
(F4B Rogers, TACO, NC, ARLON, TP-2) dielectric constant 22106, etc. Can
provide fast sample service and mass production in time to meet your
diverse, multi-variety needs.
We have a vibrant, professional and dedicated, experienced, high-quality team on technology, production and management.
Our
company has low cost and foreign information technology support and
other advantages, after more than 10 years of efforts and repeated
combination of resources, the company is casting its own brand with a
new face.
”Depends on professional
technology and rich experience of high-frequency microwave printed
circuit board production to become the domestic 3G/4G equipment top
manufacturer.” With high quality, fast delivery, high quality
after-sales service and high-level professional ethics win praise from
customers.
In Rocket, with advanced production equipment, excellent PCB solutions and complete testing methods, we have specialists working on their particular fields with the thorough mastery of their particular discipline in each of the production facilities. Training, as well as technical exchanges, are held frequently, tackling problems in key technologies and configuring scheme of equipment and allowing professionals to get up to speed on the essential tools that many organizations value today in the manufacturing industry. Thanks to those above, we have greatly improved the strength and won international reputation.
SPECIALIZED MANUFACTURING
Conductive materials and core-to-core bonding
Embedded components
RF connector attachment
Laser direct imaging (LDI)
Laser etching
Laser forming
Multi-level cavity construction
Plated cavities and edges
Composite/hybrid Structures
N+N dual press-fit
Dual-drill
Bonding on metal core
Bulid-up HDI
Long-short and staged gold finger
CAPABILITIES
3mil line and space
4mil laser defined vias
6mil chip-on-board
6mil mechanically drilled vias
Conductive and non-conductive via fill
Dual backdrilling
Sequential lamination
Mixed dielectric
Heatsink Bonding
Heavy copper/thermal vias
Blind/buried vias
Stacked and staggerd microvias
EXTENSIVE ANALYTICAL TESTING
Design Rules Check(DRC)
Electrical Testing
Automated Optical Inspection(AOI)
X-Ray
Plating thickness testing
Metalized vias inspection
Thermal shock testing
Surface peelability testing
Impedance control testing
100% visual inspection
Solderability testing
Ionic cleanliness testing
Metallographic microscopic analysis
High voltage testing
Insulating resistance testing
FEATURES
PTFE
High speed/low loss
High temperature
Low CTE
Lead-free, HASL, ENIG, EPENIG, Immersion Silver, Tin, Gold finger
Combination surface finished
Copper-filled microvias
