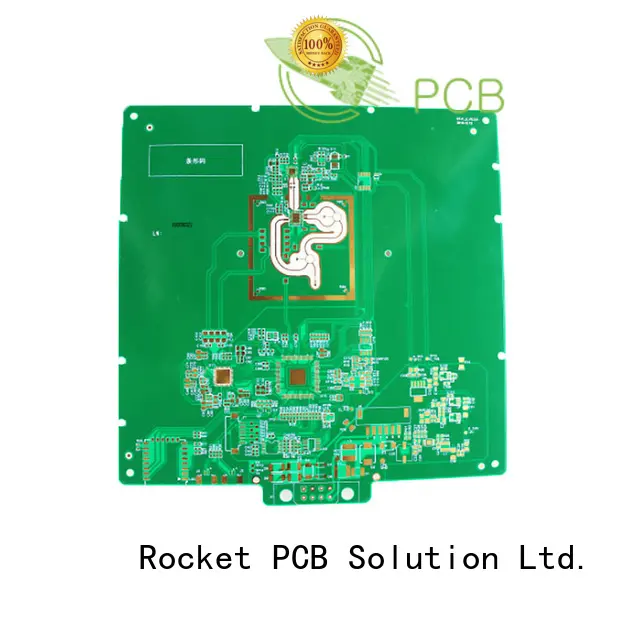

hybrid pcb board layers hybrid material for digital product
1. Being in the business for many years, we have developed a strong supply network, thus Rocket PCB pcb board layers can always be made of high-quality materials.
2. This product is crease resistant. It is made with wrinkle-resistant fabric, thus it won't have any creases when it is compressed or folded.
3. With more emphasis on circuit board , we strive to provide high-quality pcb board layers , technologies and services.
hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Rocket PCB has its own independent R&D abilities to produce pcb board layers .
2. Our factory complies with the highest international CSR standards. It has obtained the Worldwide Responsible Accredited Production (WRAP) certification.
3. The goal of Rocket PCB is to make great achievements in the industry of printed circuit board testing . Call! The aim of being a national hybrid pcb manufacturer has always been kept in Rocket PCB's mind. Call! Rocket PCB always insists on putting quality the first. Call! Rocket PCB Solution Ltd. will construct localized marketing organization to take advantage of localization and better understand the needs of the local customers. Call!
