hybrid hybrid pcb structure structure for digital product
1. Rocket PCB circuit board is designed to be flexible. It is created by our product designers who are proficient in design concepts and use them in different ways to create different forms of art/objects and visual effects.
2. The product has good chemical stability. It can withstand the use of acid, alkali, cleaning soap, or other chemical solvents.
3. This product is designed to be safe. It has soft corners and edges to reduce injury in the event of a fall.
4. This product will effectively help protect people from germs that will cause itchiness, swelling, and redness. It provides a good feet environment.

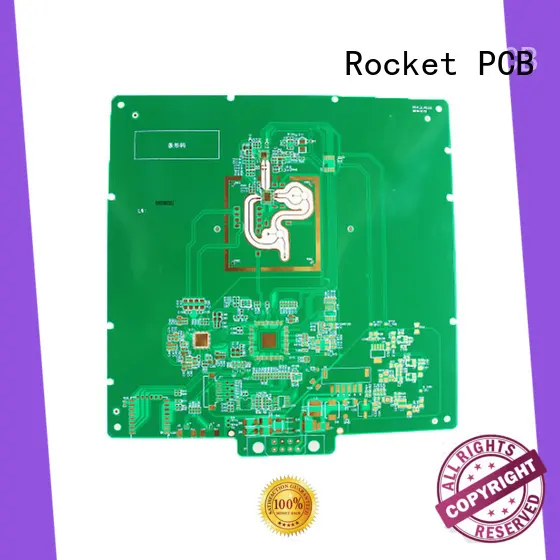

hybrid RF PCB
Because it is a high frequency signal transmission, the characteristic impedance of the finished printed board wire is required to be strict, and the line width of the board usually requires ±0.02mm. Therefore, the etching process needs to be strictly controlled, and the negatives used for optical imaging transfer should be compensated according to the line width and copper foil thickness.
The lines of such printed boards do not transmit current, but high-frequency electrical pulse signals, and defects such as pits, notches and pinholes on the wires affect transmission, and any such minor defects are not allowed. Sometimes, the thickness of the soldermask will also be strictly controlled, too thick or too thin soldermask on the line which a few microns will also be judged unqualified.
Thermal shock 288℃,10 seconds, 1~3 times, no hole wall separation.
For PTFE plate, to solve the wetting in the hole, there is no cavity in the PTH, the copper layer electroplated in the hole to withstand thermal shock, which is one of the difficulties in making the Teflon board
Where is the high frequency Hybrid board used
Satellite receivers, base antennas, microwave transmissions, automotive telephones, global positioning systems, satellite communications, communication equipment connectors, receivers, signal oscillators, home appliances networking, high-speed running computers, oscilloscopes, IC test instruments, etc., high-frequency communications. Frequency communication, high-speed transmission, high confidentiality, high transmission quality, high memory capacity processing and other communications and computer fields need high-frequency microwave printed boards
Product application
Company Features
1. Under the vigorous promotion of hybrid pcb , Rocket PCB has made great achievements.
2. The team in Rocket PCB Solution Ltd. is focused, active and capable.
3. We focus on a progressive, diverse and inclusive culture. We pursue growth through innovation in emerging markets and services and operational excellence. We will be a company that achieves real progress for our customers around the world. In order to fulfill our social and public responsibility, we are committed to solving communities' issues, protecting our environment, and creating benefits to local people. Ask!
