Name:

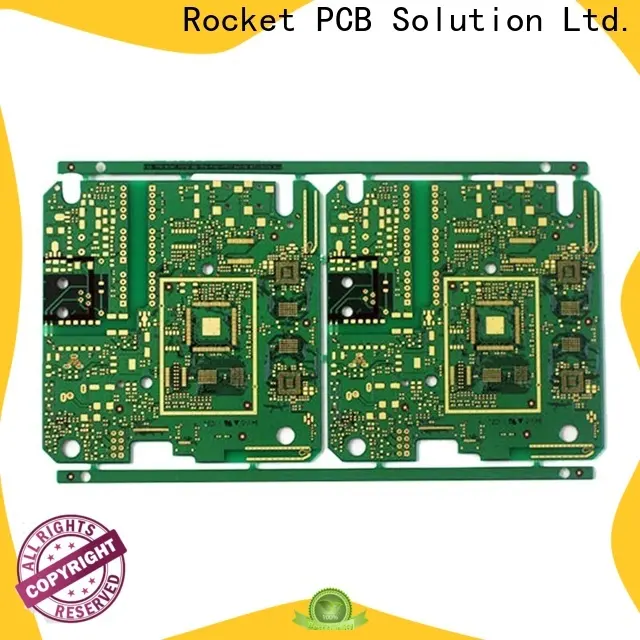

10 layer ELIC printed circuit board, any layer PCB fabrication
Material:
FR4
Board thickness:
1.6mm
Surface treatment:
Immersion Gold
Technology:
Stack up N+N, Min Track/Width 3/3mil, Blind & Buried vias, laser vias
Payment:
L/C,T/T,WesternUnion
Certification:
UL Consumer (Wear, Electronic Digital, Household Appliances, Connectors)/Industrial Control/Automobile TS16949/Medical/Server, Cloud Computing & Base Station/Aviation/Military/Communication (Certification in Related Applications)
Delivery Term::
DDU, FOB, CFA, CIF, CPT, EXW
Inquiry


Anylayer/ ELIC (Every layer interconnection)


In order to adapt to the development of CSP and inverted chip packaging (FC), it is necessary to use high density PCB with internal via hole (IVH) structure. In order to break through the limitation of traditional HDI high density interconnection laminates, it is necessary to import higher-order any layer interconnection technology so that any layer can be arbitrarily connected to another layer to form internal conduction.

The interconnection structure of via hole (IVH)  is designed to be used in higher-level HDI products to achieve the purpose of light, thin, short and small.



customized pcb prototyping at discount layer for wholesale 5





customized pcb prototyping at discount layer for wholesale 6
Advantages

Improving high Density Wiring of Products

Reduce the weight of PCB substrate: about 60%

Reduce the size of manufactured handsets: about 30%

......


ROCKET PCB Any Layer PCB (ELIC)process flow




customized pcb prototyping at discount layer for wholesale 7



Anylayer PCB DFM suggestion for layout


customized pcb prototyping at discount layer for wholesale 8

customized pcb prototyping at discount layer for wholesale 9



Product FEATURES


customized pcb prototyping at discount layer for wholesale 10

  ◪   Any Layer PCBs with laser vias and filled plating on each layer

  ◪   0.4mm thin spacing CSP supported by Any layer interconnection

  ◪   Mass-production of 10-layer M-VIA Ⅲ (Any Layer PCB) for mobile devices

ROCKET PCB STRENGTH

customized pcb prototyping at discount layer for wholesale 11


SPECIALIZED MANUFACTURING


  • Conductive materials and core-to-core bonding

  • Embedded components

  • RF connector attachment

  • Laser direct imaging (LDI)

  • Laser etching

  • Laser forming

  • Multi-level cavity construction

  • Plated cavities and edges

  • Composite/hybrid Structures

  • N+N dual press-fit

  • Dual-drill

  • Bonding on metal core

  • Bulid-up HDI

  • Long-short and staged gold finger

A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF control

A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF control

A wide range of professional manufacturing solutions, can be used for thermal energy (CTE) structural coefficients, thermal challenge design and application, extreme and unique HDI structures, and RF contro

customized pcb prototyping at discount layer for wholesale 12


CAPABILITIES


  • 3mil line and space

  • 4mil laser defined vias

  • 6mil chip-on-board

  • 6mil mechanically drilled vias

  • Conductive and non-conductive via fill

  • Dual backdrilling

  • Sequential lamination

  • Mixed dielectric

  • Heatsink Bonding

  • Heavy copper/thermal vias

  • Blind/buried vias

  • Stacked and staggerd microvias





customized pcb prototyping at discount layer for wholesale 13

EXTENSIVE ANALYTICAL TESTING


  • Design Rules Check(DRC)

  • Electrical Testing

  • Automated Optical Inspection(AOI)

  • X-Ray

  • Plating thickness testing

  • Metalized vias inspection

  • Thermal shock testing

  • Surface peelability testing

  • Impedance control testing

  • 100% visual inspection

  • Solderability testing

  • Ionic cleanliness testing

  • Metallographic microscopic analysis

  • High voltage testing

  • Insulating resistance testing



customized pcb prototyping at discount layer for wholesale 14


FEATURES


  • PTFE

  • High speed/low loss

  • High temperature

  • Low CTE

  • Lead-free, HASL, ENIG, EPENIG, Immersion Silver, Tin, Gold finger

  • Combination surface finished

  • Copper-filled microvias







Product application


customized pcb prototyping at discount layer for wholesale 15
Consumer electronics
customized pcb prototyping at discount layer for wholesale 16
Automotive electronics
customized pcb prototyping at discount layer for wholesale 17
Communications
customized pcb prototyping at discount layer for wholesale 18
Energy
customized pcb prototyping at discount layer for wholesale 19
Industrial & Instrumentation
customized pcb prototyping at discount layer for wholesale 20
IOT/Smart Home
customized pcb prototyping at discount layer for wholesale 21
Medical electronics
customized pcb prototyping at discount layer for wholesale 22
Security Industry
