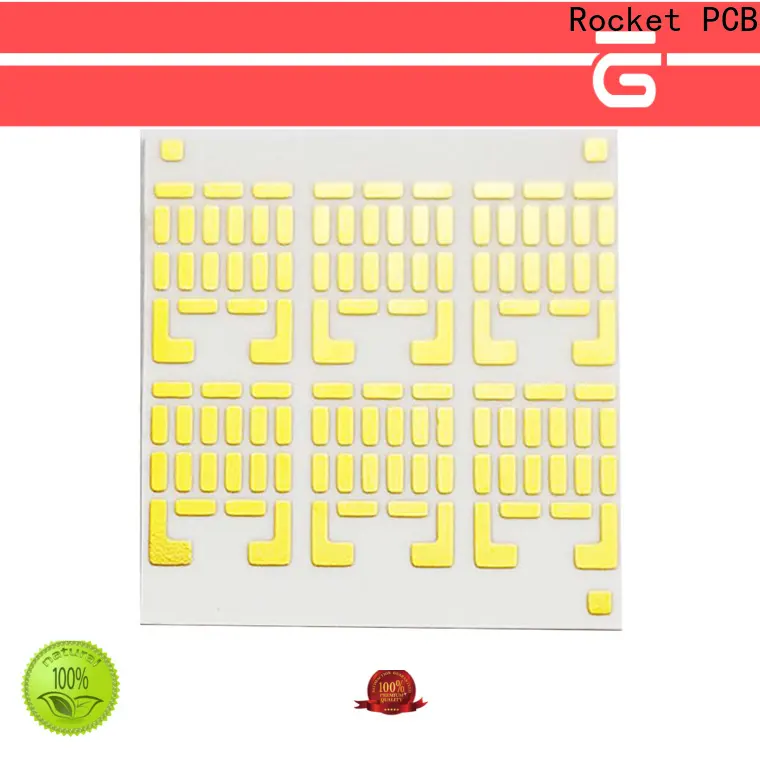

ceramic ceramic circuit boards substrates material conductivity for electronics
1. The specifications of ceramic circuit boards accord with the standards. Its parts are spaced evenly and traces are symmetric and uniform
2. This product is highly recommended worldwide due to its high economic efficiency. It offers a simple platform to arrange the electronic components in a compressed way
3. The product is characterized by its thermal resistance. The thermally conductive materials dissipate the heat through liquid cooling, natural convection, forced convection, or radiation. The product reduces the possibility of loose connections or short circuit
4. This product is anti-rust and anti-corrosion. Its metal finish is treated with a natural anodic layer formed in the air, hence, it will not get rust or corroded easily. The product features low electric currents and radiation emission
5. The product is efficient in thermal dissipation. The material used in it features excellent heat conducting and it is thermally efficient. It makes the interconnections less bulky
Processing alumina ceramic-based copper clad laminate, alumina ceramic laminate, LED ceramic laminate, Al2O3 ceramic laminate, high thermal conductivity ceramic PCB, ceramic-based CCL PCB
Ceramic-based circuit board is based on ceramics as a matrix material and fabricates electronic components of metal circuits on it. It is an indispensable basic material for power module packaging in the electronic field. Ceramic substrates refer to the special process of copper foil bonding directly to the surface of alumina (AL2Q3) or aluminium nitride (ALN) ceramic substrates (single or double sides) at high temperature. The ultra-thin composite substrate has excellent electrical insulation, high thermal conductivity, excellent solderability and high adhesion strength. It can etch various patterns like PCB board, and has great current carrying capacity. Therefore, ceramic substrate has become the basic material of high-power electronic circuit structure technology, and is the best choice for high-power LED, power devices, microwave devices, automotive electronics, high-frequency devices, solar cell components and other applications.
Product FEATURES
◪ Higher operating temperatures up to 350℃
◪ Low expansion coefficient
◪ Good thermal performance
◪ Superior high-frequency performance
◪ Reduce costs for testing, insertion and assembly
◪ Smaller package size
◪ Sealed packaging with a water absorption rate of 0%
Rocket PCB specializes in alumina (Al2O3) and aluminum nitride(AlN) boards, applying the thick film and the technology of direct bonding copper (DBC) and Direct copper Plating (DPC) to printed circuits.
Alumina (Al2O3) is widely used with its low cost. However, it is not a very good thermal conductor (24-28 W/MK), but it is still better than most metalcore PCB, because it does not require a dielectric layer between the circuit and the core. If needed, the through-hole filled with silver (Ag) can still improve thermal performance.
The board made of alumina is usually thicker (0.5mm-1.5mm) and alumina can be processed to be transparent.
Aluminum nitride (AlN) has better thermal property (> 170 w/MK) but is also more expensive. And its thermal performance can be further improved by AG or AU trace and through-holes.
Product application
Company Features
1. Rocket PCB Solution Ltd. is globally competitive in the ceramic circuit boards marketplace.
2. Our company has excellent management. They are able to create a positive and attractive work environment in which all teams can build strong relationships with each other and with customers.
3. Supported by our professional staff, Rocket PCB has enough confidence to produce thick film ceramic pcb . Ask!
